DB-200
超薄基板翹曲打印解決方案
採用雙載車設計,下CCD式定位系統,更彈性的上下料模組選擇 完美整合經典和創新設計的最新打印解決方案
產品翹曲 ≦10 mm
E&R採用最載車設計傳送,取代傳統PU繩和Index方式,特殊設計的夾爪能 處理超薄基板翹曲≦10 mm的問題
高精準度設計以及高性能產出表現
下CCD式的定位系統,能讓打印精度提升到業界最強的 ± 0.05mm
雙載車系統同時也能提升機台整體產出,Change over time < 10min
超彈性上下料模組選擇
使用者可依據生產需要,選擇Stack, Slot的上下料系統搭配 完美銜接上一站所提供的料盒,省去另外更換料盒時間
Type |
Available |
L/F |
O |
Substrate |
O |
Panel |
X |
Boat |
X |
Tray |
X |
*Panel – 300mm*300mm
Item |
DB-200 |
Machine size |
3200x1900x2000 |
Load-unload System |
Strip type L/F type |
Runner size |
W: 60-100mm L: 180-300mm |
Load-unload Q’ty |
5 |
Warpage available |
≦±10 mm |
Position |
Bottom |
Position Accuracy and Repeatability |
±50um |
Carrier type |
Dual Stage |

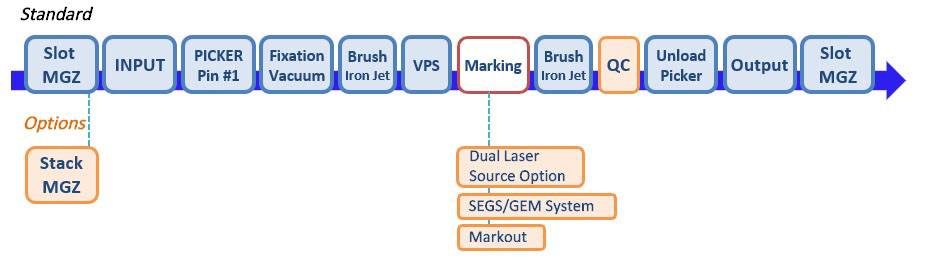

DB-200 Process Flow
