B2000TXL

​E&R B2000TXL-CMBMC Laser Marking Machine

Machine Feature

  • Solution for L/F, Substrate application

  • Marking accuracy with pin set +/- 0.1 mm, with VPS accuracy Repeatability+/- 0.75 mm

  • Working Area: 300mm x 100mm

  • High flexibility for customization as optional

    • VPS (Vision Position System)

    • Available for Stack(M) or Slog(C) magazine

    • Quality Check System with 5M, 12M

    • Single, Dual, TWIN Laser System available

    • Addition 2D Reader System

    • 2D Mark out function

    • SECs/GEM

    • Addition Pre / Post Cleaning, Brush, ESD System

    • Kits for Varity dimension products


Type

Available

L/F

O

Substrate

O

Panel

X

Boat

X

Tray

X

*Panel – 300mm*300mm

Item

B2000TXL

Machine size

3200x1700x2000

Load-unload System

Strip type

L/F type

Runner size

W:   30-100mm

L:   180-300mm

Load-unload Q’ty

2

Warpage available

±5 mm

Position

Top

Position Accuracy and Repeatability

±75um

Carrier type

Belt / PU/ Servo

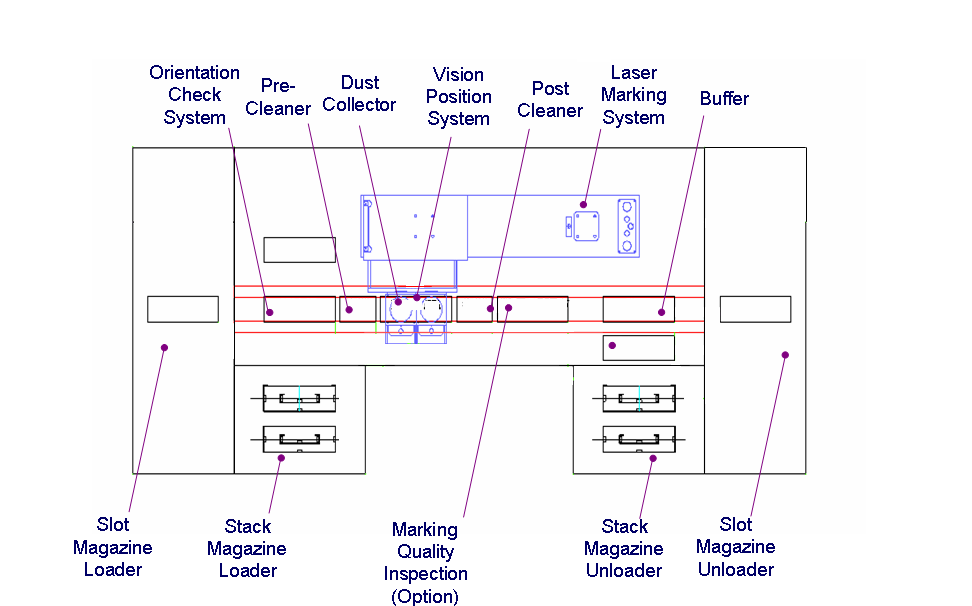

Machine Process Flow
